RO

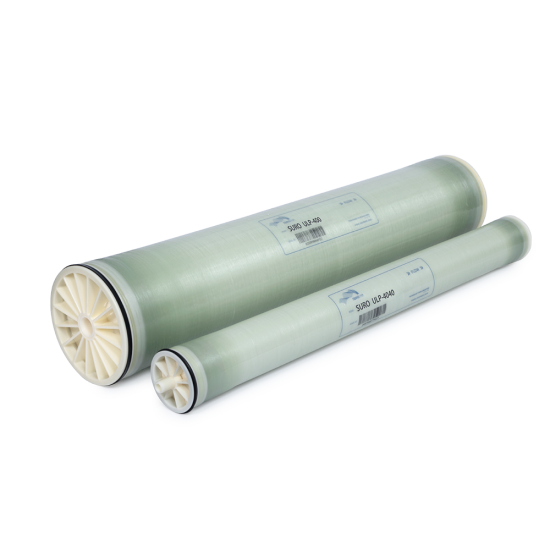

The ultra-low-pressure membrane elements are made from rolled polyamide composite membranes developed and produced in-house. The product has the characteristics of high desalination rate, low operating pressure and large membrane flux. The product can be widely used for the desalination of municipal tap water, groundwater and other raw water, such as community drinking water, food and beverage production water.
Product Parameters
| Element Model | Stabilized Salt Rejection (%) | Minimum Salt Rejection (%) | GPD (m³/d) | Permeate Flow Rate (m³/d) | Active Area (ft²) | Active Area (m²) | Feed Spacer Thickness (mil) | Feed Concentration (mg/L) | Feed Pressure (psi) | Feed Pressure (MPa) |
| ULP-400 | 99.2 | 99.0 | 12000 | 45.4 | 400 | 37.2 | 28 | 1500 | 150 | 1.03 |
| ULP-400HR | 99.5 | 99.2 | 9000 | 34.1 | 400 | 37.2 | 28 | 1500 | 150 | 1.03 |
| ULP-4040 | 99.2 | 99.0 | 2600 | 9.8 | 90 | 8.4 | 28 | 1500 | 150 | 1.03 |
| ULP-4040HR | 99.5 | 99.2 | 1900 | 7.2 | 90 | 8.4 | 28 | 1500 | 150 | 1.03 |
Permeate flow and salt rejection based on the following standard conditions: NaCl solution, 25°C, pH 7.5-8 and 15% recovery. Flow performance variation: ±15%
