RO

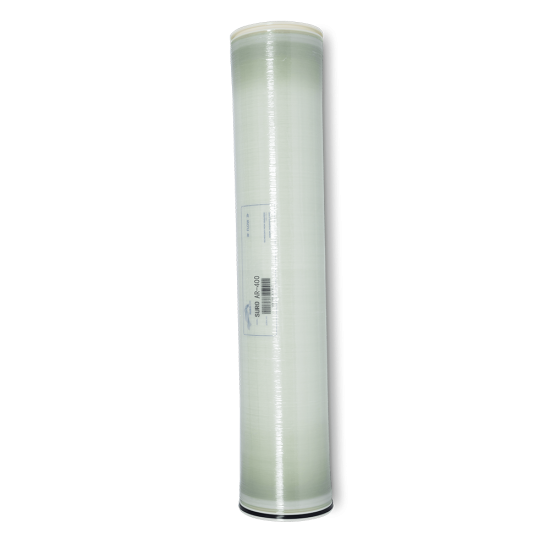

Acid-resistant high-pressure reverse osmosis membrane elements are suitable for the desalination of highly acidic and saline wastewater with a salt concentration of 5000mg/L or more. Through customised optimisation of the membrane process, the membrane elements are characterised by high acid resistance, high desalination, high stability and cleaning recovery, and can be widely used for the deep concentration treatment of acidic wastewater.
Product Parameters
| Element Model | Stabilized Salt Rejection (%) | Minimum Salt Rejection (%) | GPD (m³/d) | Permeate Flow Rate (m³/d) | Active Area (ft²) | Active Area (m²) | Feed Spacer Thickness (mil) | Operation pH Range | Feed Concentration (mg/L) | Feed Pressure (psi) | Feed Pressure (MPa) |
| AR-400 | 99.8 | 99.6 | 7500 | 28.4 | 400 | 37.2 | 28 | 0–11 | 32000 | 800 | 5.5 |
| AR-4040 | 99.8 | 99.6 | 1600 | 6.1 | 95 | 8.8 | 28 | 0–11 | 32000 | 800 | 5.5 |
Permeate flow and salt rejection based on the following standard conditions: NaCl solution, 25°C, pH 7.5-8 and 8% recovery. Flow performance variation: ±15%
